Description :

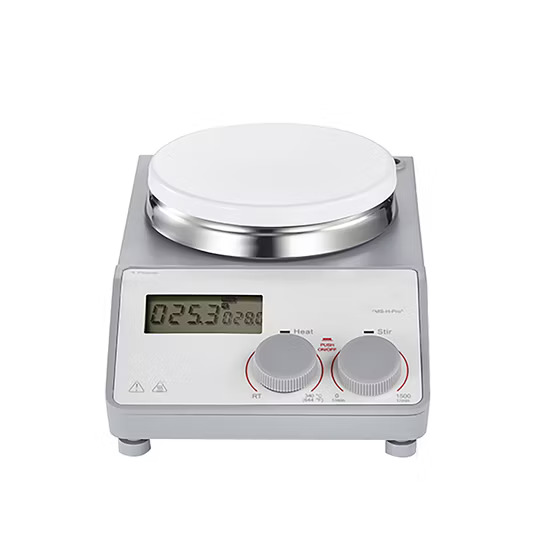

MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer/MS-H-PRO+/Work plate Dimension Ø135mm（5 inch)/DLAB USA
- DC brushless motor free of maintenance and spark, and with long service life
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- “HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
- External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
- Work plate with ceramic coating provides good chemical-resistantperformance
- Remote function provides PC control and data transmission
- Wide variety of accessories available to choose
Work plate Dimension Ø135mm（5 inch）
Work plate material stainless steel cover with ceramic coating
Max. stirring quantity [H2O] 20L
Speed range 100-1500rpm resolution ±1rpm
Speed display LCD
Temperature display LCD
Heating temperature range Room Temp.-340℃, increment 1℃
Temperature control accuracy ±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy ±0.1℃
External temperature sensor PT1000 ( accuracy±0.2℃ )
“Hot” warning 50℃
Overheating temperature protection 420℃
Motor type Brushless DC motor
Stirring positions 1
Max. magnetic bar length 80mm
Data connector RS232
Key Features
- DC brushless motor free of maintenance and spark, and with long service life
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
