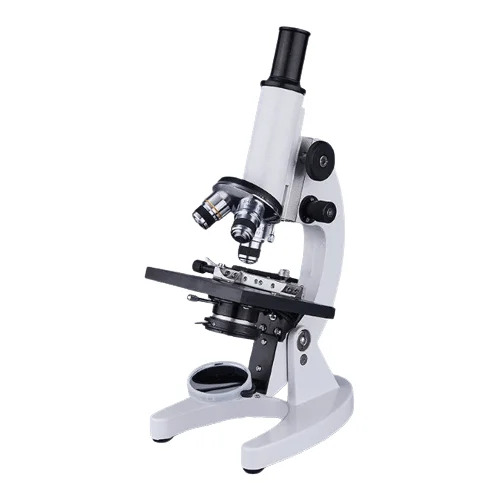

The XSP-13A is a monocular biological compound microscope designed primarily for educational use in schools, colleges, and basic laboratory research. It is valued for its affordability, durability, and high magnification capabilities, typically ranging from 40x to 1250x.
Key Specifications
- Magnification Range: 40x–1250x (some variants may reach up to 1600x depending on the eyepiece/objective combination).
- Viewing Head: Monocular head inclined for comfortable viewing.
- Objectives: Usually equipped with three achromatic objectives: 10x, 40x(S), and 100x(S, Oil).
- Eyepieces: Often includes multiple options such as 5x, 10x, and 12.5x.
- Focusing: Separate controls for coarse and fine adjustment to allow for precise imaging.
- Illumination: Typically uses a plan-concave reflecting mirror (50mm diameter) to utilize natural or external light, though some models may offer LED light source options.
- Stage: A single-layer mechanical stage (approx. 110x120mm) often featuring a moving scale or clips for specimen positioning.
Typical Applications
- Educational: Ideal for biology students and teachers to study plant and animal cell structures.
- Clinical/Diagnostic: Suitable for basic medical examinations, such as observing blood smears, bacteria, and tissue samples.
- Research: Used in botanical and microbiological studies where standard high-resolution magnification is required.
Product Availability
This model is widely manufactured in China and distributed globally through various suppliers.
- In Bangladesh, it is available through retailers like Labtex Bangladesh, ASTZ, and Safestall BD.
- In the Philippines, it can be found via Philippine Medical Supplies.
- Wholesale options are frequently listed on platforms like Alibaba and Made-in-China.
Would you like to know the current price in a specific region or need a comparison with higher-end binocular models?
