Description

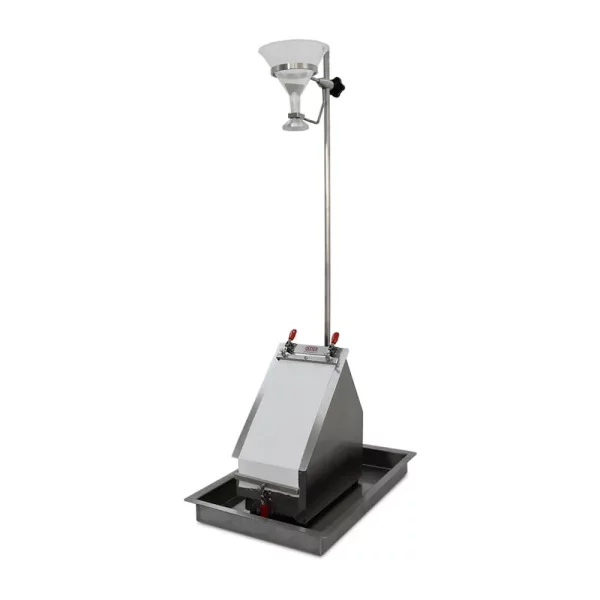

Fabric impact penetration and water permeability tester
It is used to measure the water resistance of fabrics under low impact conditions, so as to predict the rain resistance of fabrics.
Standards:AATCC42 ISO18695 GB/T33732 GB/T24218.17, etc.
| mpact height | (610ยฑ10) mm |
| Funnel diameter | 152 mm |
| Number of nozzle holes | 25 |
| Nozzle aperture | 0.99mm |
| Sample placement angle | 45ยฐ from the horizontal |
| Matching measuring cup | 500ml |
| Sample size | (178ยฑ10)mmร(330ยฑ10)mm |
| Tension spring clip | (0.45ยฑ0.05)kg |
| Dimensions | 500mm(L)ร600mm(W)ร850mm(H) |
| Weight | about 15kg |
