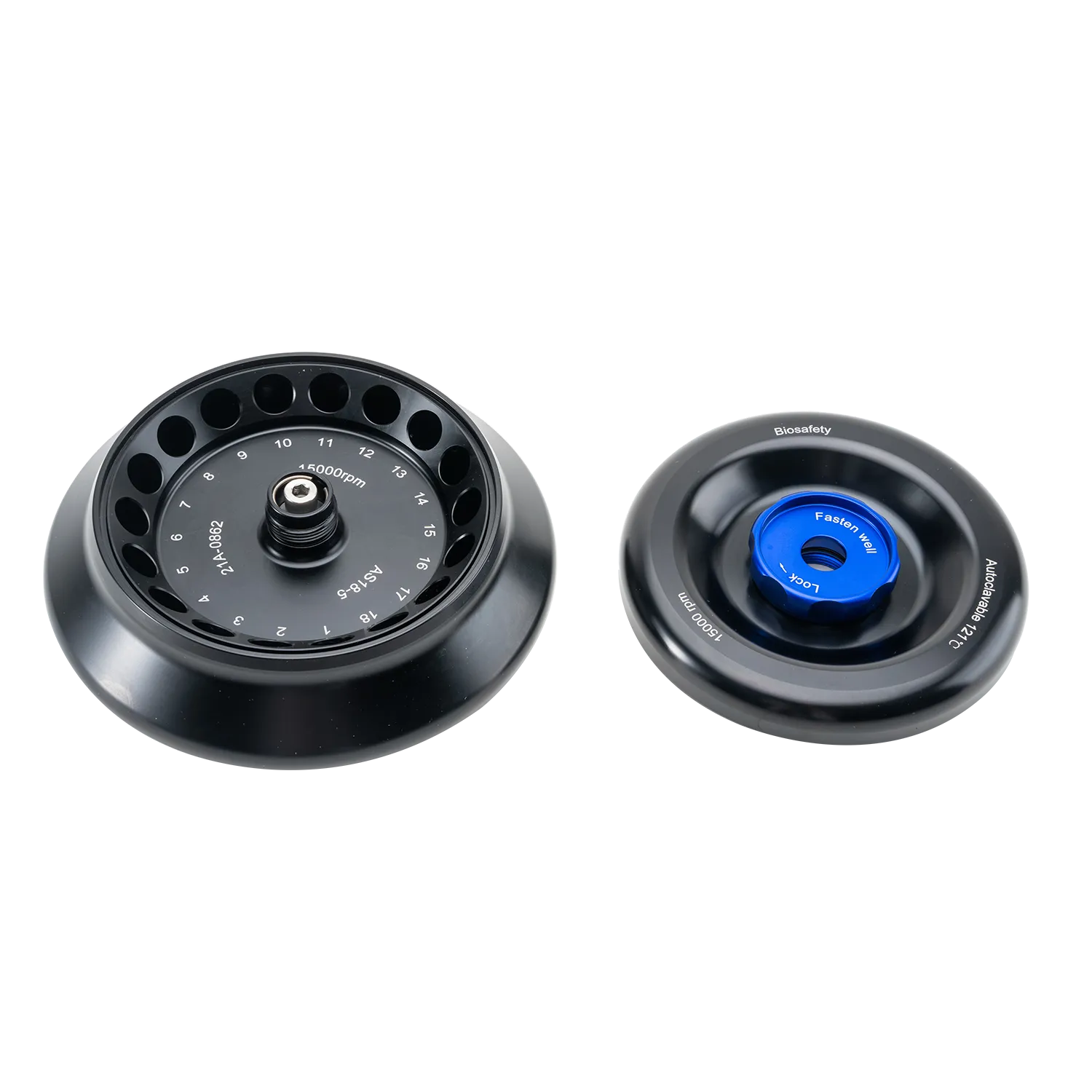

The AS18-5V is a fixed-angle rotor designed for high-performance separation in DLAB Scientific centrifuges, particularly the D1536 and D1536R series.
Key Specifications
- Capacity: 18 slots for 5mL culture tubes.
- Maximum Speed: Up to 15,000 rpm.
- Maximum RCF: 25,150 xg.
- Material: Built with a stainless steel body and aluminum buckets for durability.
- Safety: Features Bio-safe sealing to prevent aerosol leakage during operation.
Rotor Types & Compatibility
There are two primary versions of this rotor that look similar but serve different centrifuge lines:
- AS18-5V (Fixed Angle): Typically features a stainless steel body with aluminum buckets. It is designed for 5mL culture tubes and is often paired with the DLAB DM0636 series for clinical applications.
- AS18-5 (Aluminum Alloy Kit): A high-speed version (P/N 19400073) designed for the DLAB D3024 & D1524R micro-centrifuges, reaching up to 15,000 rpm.
Compatible Adapters
While the AS18-5V rotor natively holds 5mL tubes, DLAB provides adapters to accommodate smaller microcentrifuge tubes (1.5mL, 2.0mL, 0.5mL, and 0.2mL) within the same slots. Common adapter kits include:
- A02P2: For 0.2mL PCR tubes.
- A05P2: For 0.5mL tubes (Catalog No. 19500002).
- SA05P2: Specific adapter kit for 2mL to 0.5mL reduction, often sold in packs of 8 or 24.
Technical Performance (D1536 Series)
- Max Speed: 15,000 rpm.
- Max RCF: 25,150 xg.
- Bio-Sealing: Includes an O-ring and biosafe lid to prevent aerosol contamination, critical for infectious samples.
- Maintenance: Both the rotor and buckets are fully autoclavable at 121°C for 20 minutes.
